Contact Rating: 1A@120VAC or 28 VDC;
Electrical Life: 50,000 cycles
Contact Resistance: 20mΩ max.
Insulation Resistance: 1,000MΩ min.
Dielectric Strength: 1,500V RMS @sea level
Operating Temperature:-30℃~+85℃
介紹：

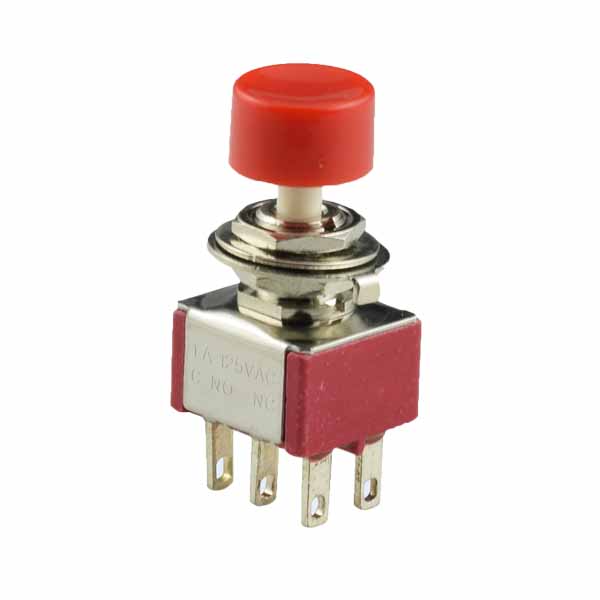

小型按鍵開關(guān)T80-P系列，有SPDT、DPDT等功能，有直腳和90度彎腳，各種端子種類跟長度和多種規(guī)格蓋帽，我們產(chǎn)品擁有UL、ENEC并符合ROHS規(guī)范
