Rating:3A 125VAC 1A 250VAC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force: 250±100gf
Total Travel:.2.5±0.4mm
Operatong Life:10,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:0℃~+85℃
介紹：

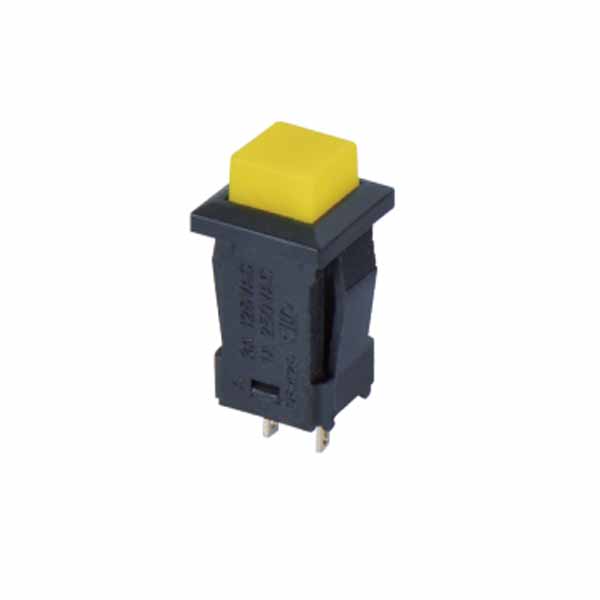

按鍵開關(guān)PB系列，功能有帶鎖LOCK和復(fù)位常開，開孔10~16不等，常于設(shè)備儀器，家電產(chǎn)品等
